CPU

    - LGA 775 for Intel® Core 2 Extreme / Core 2 Quad / Core 2 Duo / Pentium® Dual Core / Celeron® Dual Core / Celeron, supporting Penryn Quad Core Yorkfield and Dual Core Wolfdale processors

    - Supports FSB 1333/1066/800/533 MHz

    - Supports Hyper-Threading Technology

    - Supports Untied Overclocking Technology

    - Supports EM64T CPU

    Chipset

    - Northbridge: Intel® G41

    - Southbridge: Intel® ICH7

    Memory

    - Dual Channel DDR3 memory technology

    - 2 x DDR3 DIMM slots

    - Supports DDR3 1333(OC)/1066/800 non-ECC, un-buffered memory

    - Max. capacity of system memory: 8GB*

    *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

    **In order to maximize the system memory, please install 4GB memory module with 16 cells or 2GB memory modules with at least 8 cells.

    BIOS

    - 8Mb AMI Legal BIOS

    - Supports "Plug and Play"

    - ACPI 1.1 Compliance Wake Up Events

    - SMBIOS 2.3.1 Support

    - VCCM, NB, VTT Voltage Multi-adjustment

    Graphics

    - Intel® Graphics Media Accelerator X4500

    - Pixel Shader 4.0, DirectX 10

    - Max. shared memory 1759MB*

    - Supports D-Sub with max. resolution up to 2048x1536 esam 75Hz

    *The shared memory size is dynamically controlled by VGA driver, and the Max. shared memory size will be available only when more than 4GB memory is installed under 64-bit OS.

    Audio

    - 5.1 CH HD Audio (VIA® VT1705 Audio Codec)

    LAN

    - Atheros® PCIEx1 LAN AR8132L

    - Speed: 10/100 Ethernet

    - Supports Wake-On-LAN

    - Supports PXE

    Slots

    - 1 x PCI Express x16 slot

    - 1 x PCI slot

    Connector

    - 4 x SATA2 3.0 Gb/s connectors (No support for RAID and Hot Plug functions)

    - 1 x ATA100 IDE connector (supports 2 x IDE devices)

    - 1 x Print port header

    - CPU/Chassis FAN connector

    - 24 pin ATX power connector

    - 4 pin 12V power connector

    - Front panel audio connector

    - 2 x USB 2.0 headers (support 4 USB 2.0 ports)

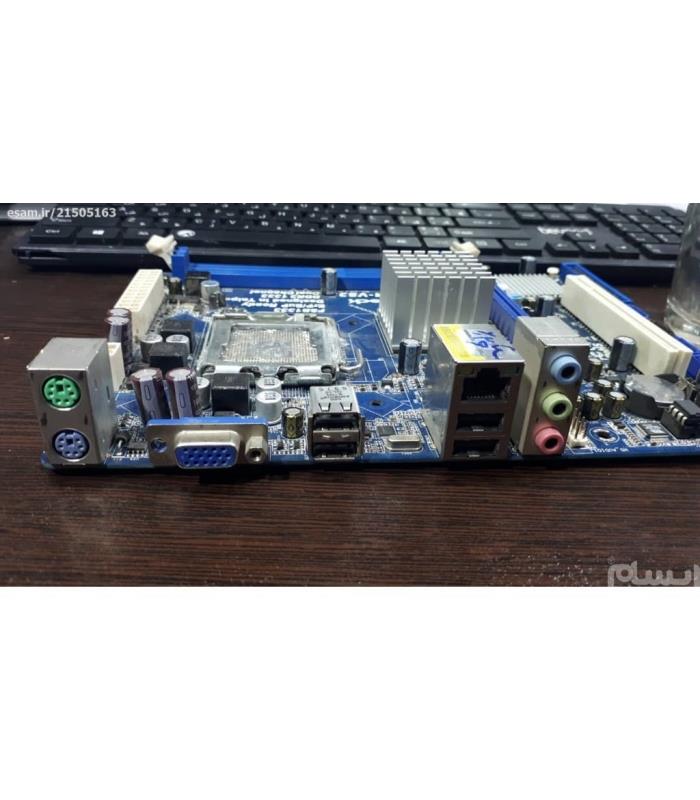

    Rear Panel I/O

    I/O Panel

    - 1 x PS/2 Mouse Port

    - 1 x PS/2 Keyboard Port

    - 1 x Serial Port: COM1

    - 1 x VGA Port

    - 4 x Ready-to-Use USB 2.0 Ports

    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

    - HD Audio Jack: Line in / Front Speaker / Microphone

    Unique Feature

    - ASRock OC Tuner

    - Intelligent Energy Saver

    - Instant Boot

    - ASRock Instant Flash

    - ASRock OC DNA

    - Hybrid Booster:

    - CPU Frequency Stepless Control

    - ASRock U-COP

    - Boot Failure Guard (B.F.G.)

    Support CD

    - Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial Creative Sound Blaster X-Fi MB - Trial)

    Accessories

    - Quick Installation Guide, Support CD, I/O Shield

    - 2 x SATA Data Cables

    Hardware Monitor

    - CPU Temperature Sensing

    - Chassis Temperature Sensing

    - CPU Fan Tachometer

    - Chassis Fan Tachometer

    - CPU Quiet Fan

    - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

    Form Factor

    - Micro ATX Form Factor: 8.9-in x 6.7-in, 22.6 cm x 17.0 cm

    OS

    - Microsoft® Windows® 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant

    Certifications

    - FCC, CE

    - EuP Ready (EuP ready power supply is required)
