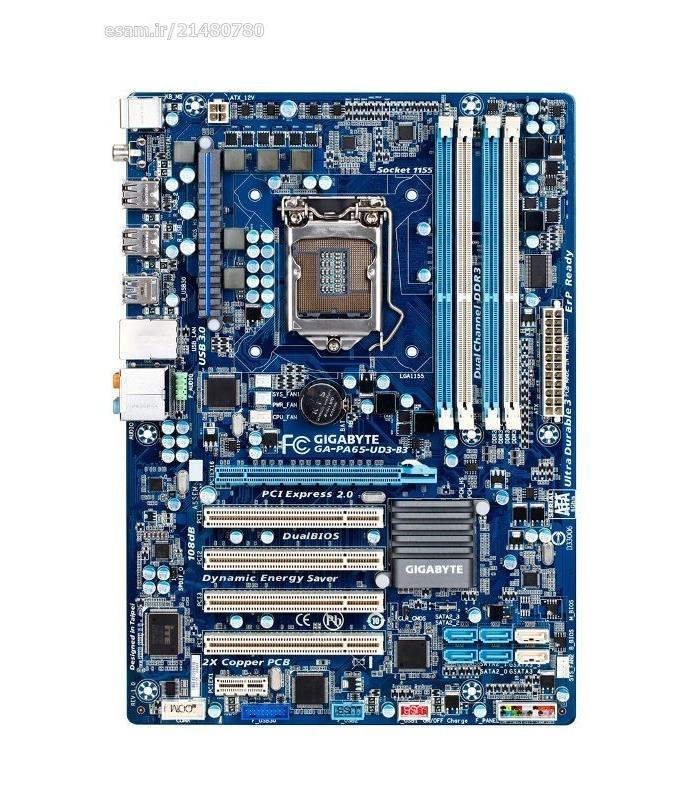

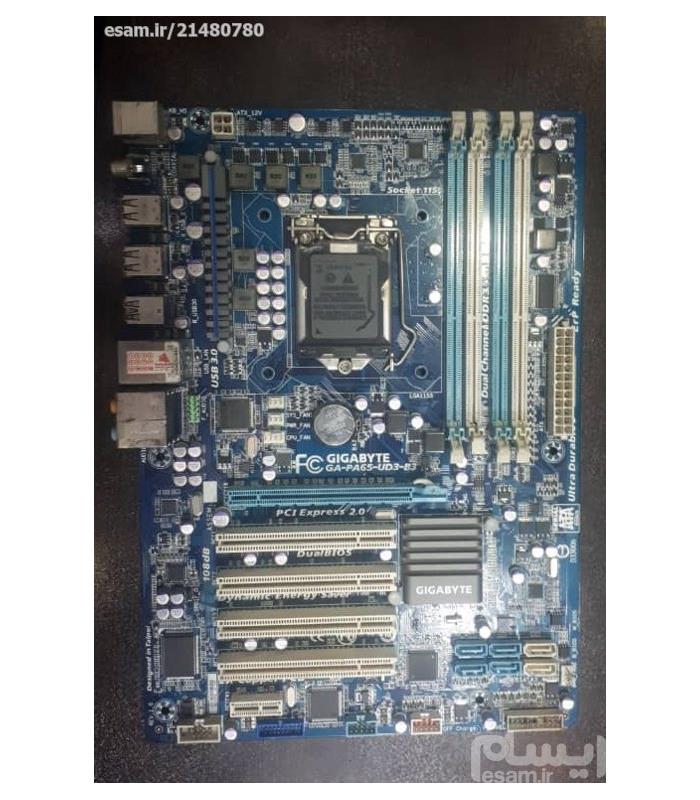

gigabyte ga-PA65-UD3-B3 1155 USB3 LAN PS2

CPU

        Support for Intel® Core i7 processors/Intel® Core i5 processors/ Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package

        L3 cache varies with CPU

    (Some Intel® Core processors require a graphic card, please refer "CPU support List" for more information.)

    Chipset

        Intel® H61 Express Chipset

    Memory

        4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

        * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

        Dual channel memory architecture

        * Because of Intel chipset limitation, please use single-side memory module if four memory modules are to be installed.

        Support for DDR3 1333/1066/800 MHz memory modules

        * If four DDR3 1333 MHz memory modules are installed, the maximum memory speed will be limited to 1066 MHz.

        Support for non-ECC memory modules

    (Go to GIGABYTEs website for the latest supported memory speeds and memory modules.)

    Audio

        Realtek ALC889 codec

        High Definition Audio

        2/4/5.1/7.1-channel

        Support for S/PDIF Out

    LAN

        1 x Realtek RTL8111E chip (10/100/1000 Mbit)

    Expansion Slots

        1 x PCI Express x16 slot, running at x16

        1 x PCI Express x1 slot

        (All PCI Express slots conform to PCI Express 2.0 standard.)

        4 x PCI slots

    Storage Interface

    Chipset:

        4 x SATA 3Gb/s connectors (SATA2_0~SATA2_3) supporting up to 4 SATA 3Gb/s devices

    Marvell 88SE9172 chip:

        2 x SATA 6Gb/s connectors (GSATA3_4, GSATA3_5) supporting up to 2 SATA 6Gb/s devices

        Support for SATA RAID 0 and RAID 1

    USB

    Chipset:

        Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)

    2 x Etron EJ168 chips:

        Up to 4 USB 3.0/2.0 ports (2 on the back panel, 2 via the USB bracket connected to the internal USB header)

    Internal I/O Connectors

        1 x 24-pin ATX main power connector

        1 x 4-pin ATX 12V power connecto

        2 x SATA 6Gb/s connectors

        4 x SATA 3Gb/s connectors

        1 x CPU fan header

        2 x system fan headers

        1 x power fan header

        1 x front panel header

        1 x front panel audio header

        1 x S/PDIF Out header

        2 x USB 2.0/1.1 headers

        1 x USB 3.0/2.0 header

        1 x serial port header

        1 x clearing CMOS jumper

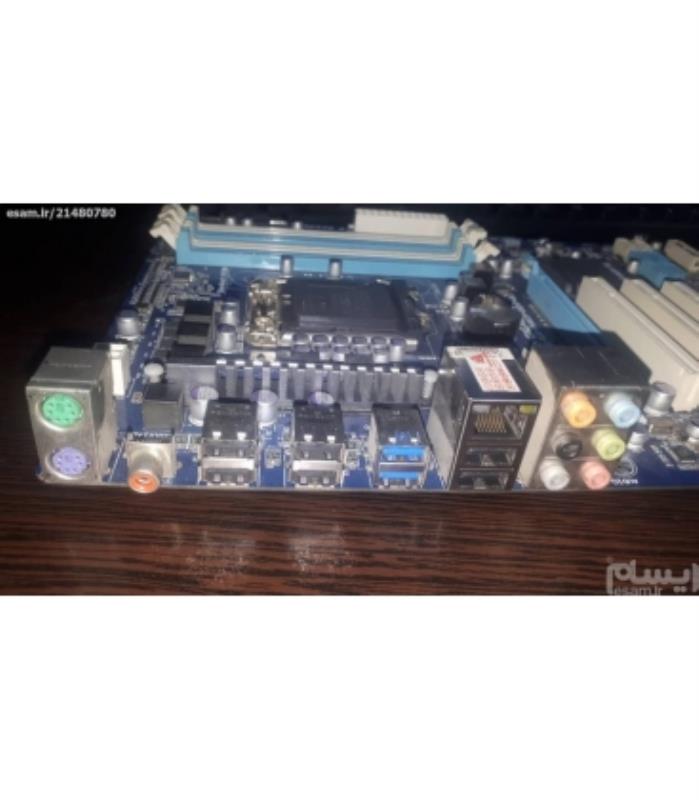

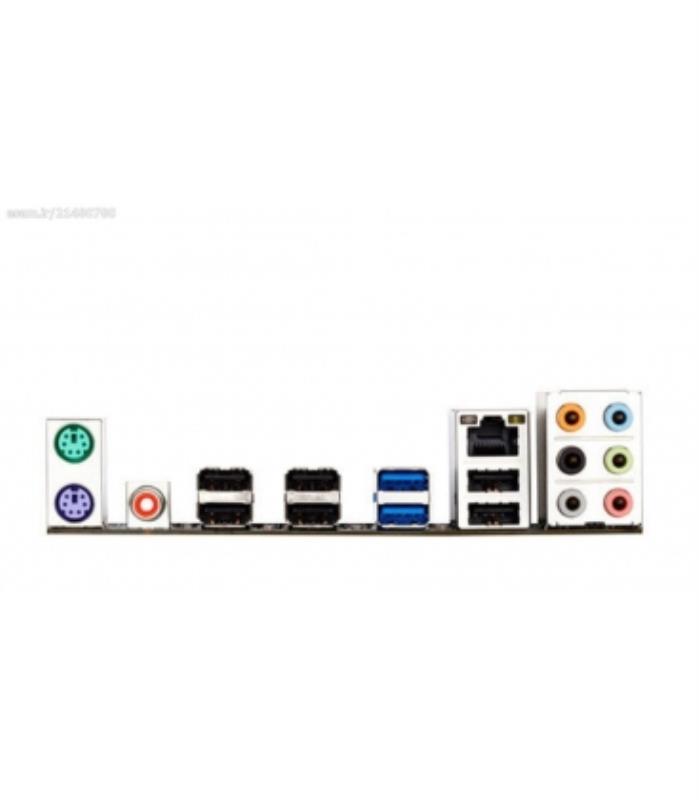

    Back Panel Connectors

        1 x PS/2 keyboard port

        1 x PS/2 mouse port

        1 x coaxial S/PDIF Out connector

        6 x USB 2.0/1.1 ports

        2 x USB 3.0/2.0 ports

        1 x RJ-45 port

        6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

    I/O Controller

        iTE IT8728 chip

    H/W Monitoring

        System voltage detection

        CPU/System temperature detection

        CPU/System/Power fan speed detection

        CPU overheating warning

        CPU/System/Power fan fail warning

        CPU/System fan speed control

        * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

    BIOS

        2 x 32 Mbit flash

        Use of licensed AWARD BIOS

        Support for DualBIOS

        PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

    Unique Features

        Support for esamBIOS

        Support for Q-Flash

        Support for Xpress BIOS Rescue

        Support for Download Center

        Support for Xpress Install

        Support for Xpress Recovery2

        Support for EasyTune

        * Available functions in EasyTune may differ by motherboard model.

        Support for Dynamic Energy Saver 2

        Support for Smart 6

        Support for Auto Green

        Support for ON/OFF Charge

        Support for Cloud OC

        Support for Q-Share

    Bundled Software

        Norton Internet Security (OEM version)

    Operating System

        Support for Microsoft® Windows® 8/7/Vista/XP

    Form Factor

        ATX Form Factor 30.5cm x 21.5cm
