CPU

Intel® Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors

Chipset

Intel® B75

Memory

2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).

Graphic

Integrated Graphics Processor

Multi-VGA output support : DVI/RGB ports

- Supports DVI with max. resolution 1920 x 1200 esam 60 Hz

- Supports RGB with max. resolution 2048 x 1536 esam 75 Hz

Maximum shared memory of 1696 MB

Multi-GPU Support

Supports LucidLogix® Virtu MVP Technology

Expansion Slots

1 x PCIe 3.0/2.0 x16

2 x PCIe 2.0 x1

1 x PCI

Storage

Intel® B75 chipset :

5 x SATA 3Gb/s port(s), blue

1 x SATA 6Gb/s port(s), gray

LAN

Realtek® 8111F-VB-CG, 1 x Gigabit LAN Controller(s)

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC

- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function

USB Ports

Built-in Controller :

8 x USB 2.0 port(s) (4 at back panel, black, 4 at mid-board)

Built-in Controller :

4 x USB 3.0 port(s) (2 at back panel, , 2 at mid-board)

Special Features

GPU Boost

ASUS Exclusive Features :

- AI Suite II

- Ai Charger

- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

- Network iControl

- USB 3.0 Boost

ASUS Quiet Thermal Solution :

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS MyLogo 2

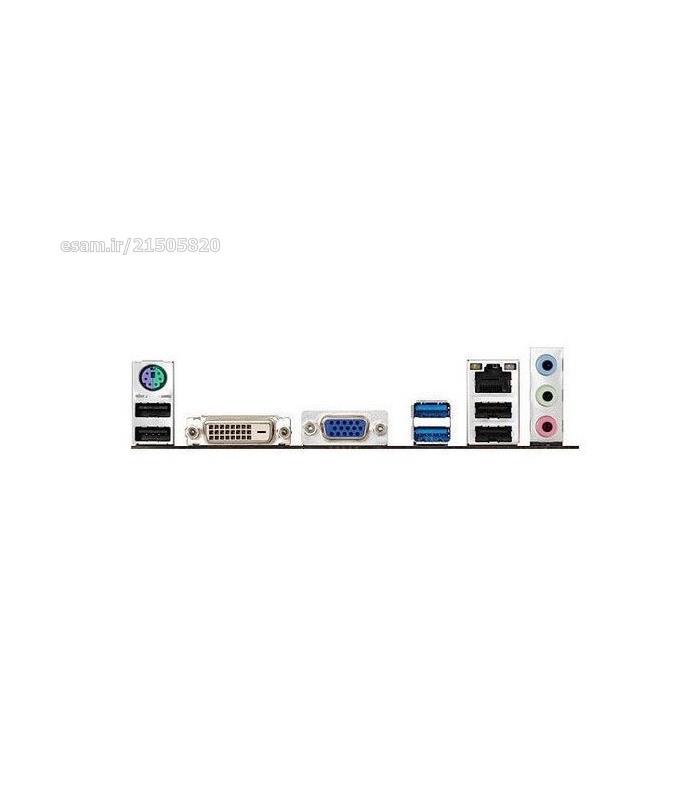

Back I/O Ports

1 x PS/2 keyboard/mouse combo port(s)

1 x DVI-D

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.0

4 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x COM port(s) connector(s)

1 x SATA 6Gb/s connector(s)

5 x SATA 3Gb/s connector(s)

1 x CPU Fan connector(s)

1 x Chassis Fan connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x parallel port connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x Internal speaker connector(s)

1 x System panel(s)

Accessories

Users manual

I/O Shield

1 x SATA 3Gb/s cable(s)

1 x SATA 6Gb/s cable(s)

BIOS

128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Support Disc

Drivers

ASUS Utilities

ASUS Update

Anti-virus software (OEM version)

Form Factor

uATX Form Factor

9.6 (inch x 7.8 inch ( 24.4 cm x 19.8 cm
