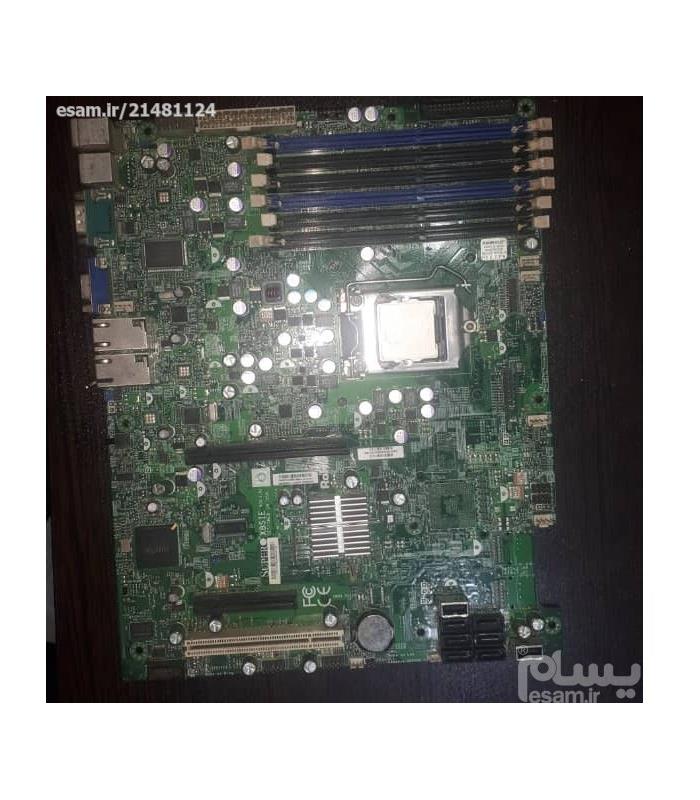

supermicro X8SIE 1156 VGA COM PS2 USB LAN

X8SIE (Standard Retail Pack)

MBD-X8SIE-O

MBD-X8SIE-B

    X8SIE (Bulk Pack)

Physical Stats

Form Factor

    ATX

Dimensions

    12" x 9.6" (30.5cm x 24.4cm)

Processor/Cache

CPU

    LGA 1156 Socket

    Intel® Xeon® X3400 series

    Intel® Xeon® L3400 series

    Intel® Core i3

    Intel® Pentium® G6950

    Intel® Celeron® G1101

System Memory

Memory Capacity

    6x 240-pin DDR3 DIMM slots

    Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM slots

    Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM slots

    1333 / 1066 / 800 MHz

    Dual Core processors of Ci3 and Pentium: support ECC UDIMM only

    Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements

Note

    All X3400 series and L3426 CPU support RDIMM and UDIMM

    All i3 series, L3406, G6950, and G1101 CPU support UDIMM only

Memory Type

    1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes

    1GB, 2GB, 4GB, 8GB

Memory Voltage

    1.5 V

Error Detection

    Corrects single-bit errors

    Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

    Intel® 3420 chipset

SATA

    6x SATA (3 Gbps)

    RAID 0, 1, 5, 10 support (Windows)

    RAID 0, 1, 10 support (Linux)

Network Controllers

    2x Intel® 82574L Gigabit Ethernet Controllers

    Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

VGA

    Matrox G200eW 16MB DDR2

Super I/O

    Nuvoton W83627DHG UBE

Clock Generator

    CK505

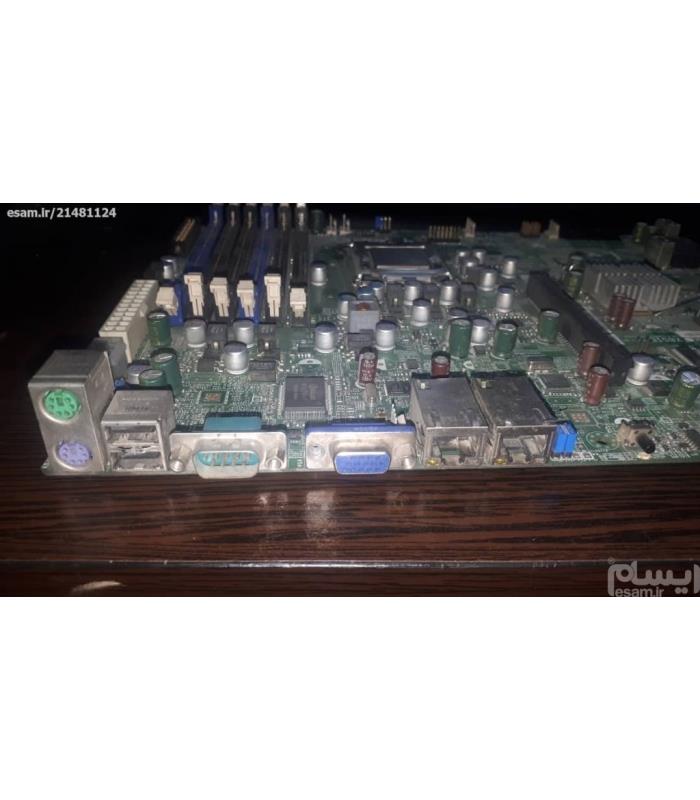

Input / Output

Serial ATA

    6 SATA ports

    6 SATA hard drives supported

LAN

    2x RJ45 LAN ports

USB

    2x USB rear ports

    2x USB on-board

    2x USB internal header (4 ports)

    Total 8 USB 2.0 Compliant

VGA

    1x VGA port

Keyboard / Mouse

    PS/2 keyboard and mouse ports

Serial Port / Header

    1x Fast UART 16550 serial port

    1x internal header

Operating Environment

Environmental Spec.

    Operating Temperature: 10°to 35°C (50°to 95°F)

    Non-operating Temperature: -40°to 70°C (-40°to 158°F)

    Operating Relative Humidity: 8% to 90% (non-condensing)

    Non-operating Relative Humidity: 5 to 95% (non-condensing)
