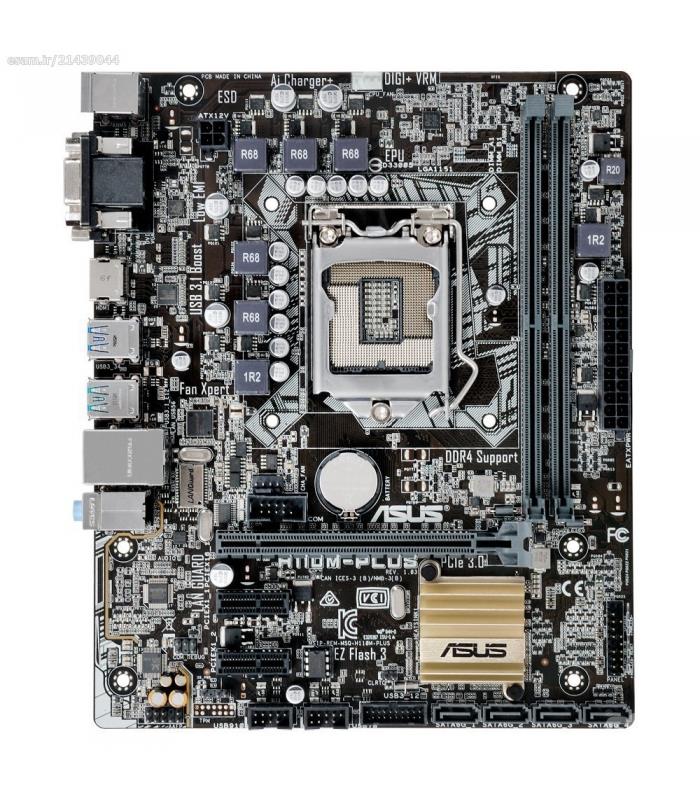

ASUS H110M-PLUS 1151 HDMI VGA DVI USB3 PS2 LAN

CPU

Intel® Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® H110

Memory

2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

Multi-VGA output support : HDMI/DVI-D/RGB ports

- Supports HDMI with max. resolution 4096  x 2160  esam 24 Hz / 2560  x 1600  esam 60 Hz

- Supports DVI-D with max. resolution 1920  x 1200  esam 60 Hz

- Supports RGB with max. resolution 1920  x 1200  esam 60  Hz

Maximum shared memory of 1024  MB

Supports Intel® InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Supports up to 2  displays simultaneously

Expansion Slots

1 x PCIe 3.0/2.0 x1 (x16 mode)

2 x PCIe 2.0 x1

Storage

Intel® H110 Chipset :

4 x SATA 6Gb/s port(s), gray,

Intel® Rapid Storage Technology supports*1

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2

- Supports : Jack-detection, Front Panel Jack-retasking

Audio Feature :

- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.

- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference

- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals

- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity

USB Ports

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)

Intel® H110 chipset :

6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)

ASMedia® USB 3.1 controller :

2 x USB 3.1 Gen 2 port(s) (2 at back panel, teal blue, Type-A)

Special Features

ASUS 5X Protection II :

- ASUS LANGuard - 2.5X higher surge tolerance

- ASUS Overvoltage Protection - World-class circuit-protecting power design

- ASUS DIGI+ VRM - 6  Phase digital power design

- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits

- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger+

- Anti-Surge

- Low EMI Solution

- ESD Guards

- USB 3.1 Boost

- Mobo Connect

- PC Cleaner

Remote Entertainment

- Media Streamer

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- Push Notice

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Operating System Support

Windows® 10 , 64bit

Windows® 8.1 , 64bit

Windows® 7 , 32bit/64bit *3

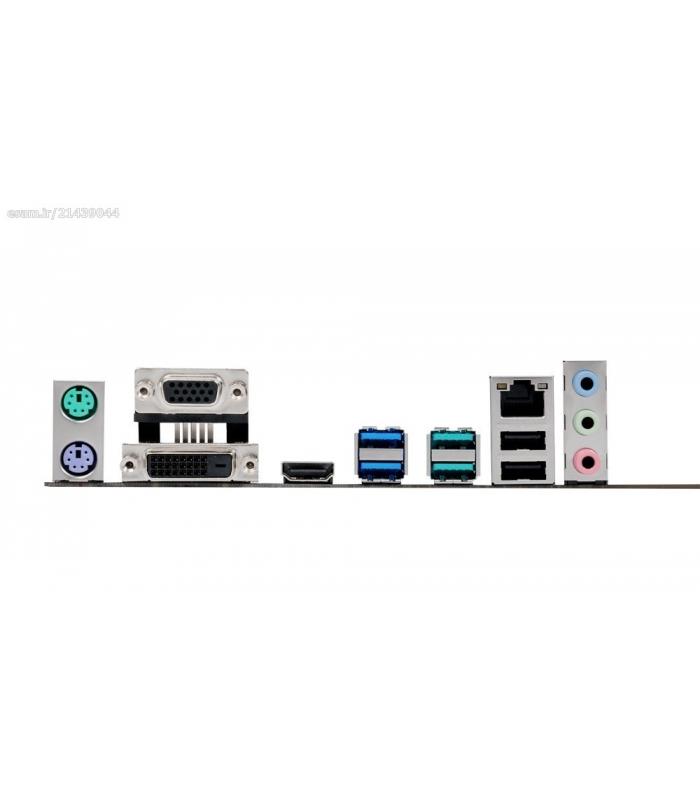

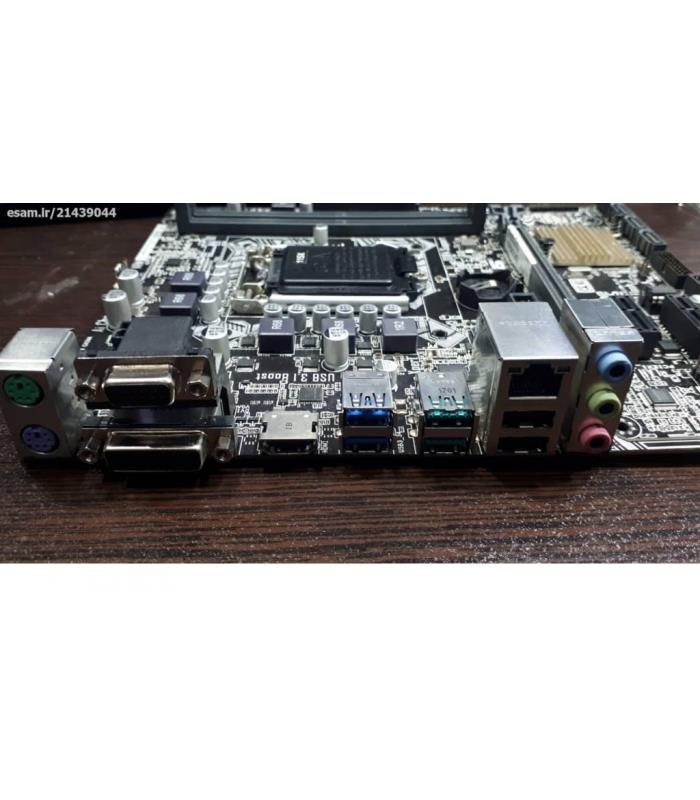

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x DVI-D

1 x D-Sub

1 x HDMI

1 x LAN (RJ45) port(s)

2 x USB 3.1 Gen 1 (blue)

2 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)

2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

1 x COM port(s) connector(s)

4 x SATA 6Gb/s connector(s)

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

Accessories

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 3.0, WfM2.0, SM BIOS 3.0 ACPI 5.0, Multi-language BIOS,

ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor

uATX Form Factor

8.9  inch x 7.3  inch ( 22.62  cm x 18.55  cm )
