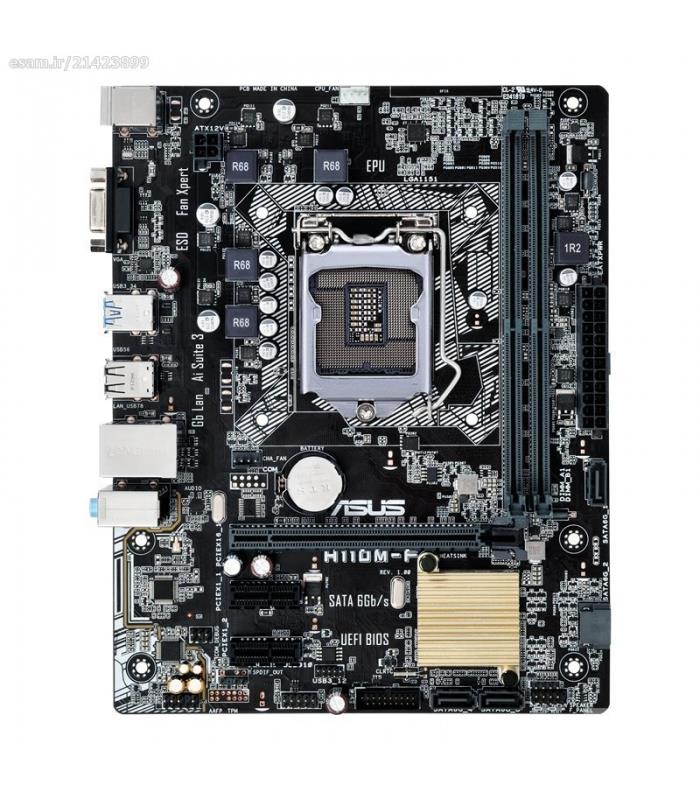

ASUS H110M-F 1151 VGA USB3

CPU

Intel® Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium®/Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0

* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.

* Refer to www.asus.com for CPU support list

Chipset

Intel® H110

Memory

2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Hyper DIMM support is subject to the physical characteristics of individual CPUs.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

* The maximum memory frequency supported varies by processor.

* Due to Intel® chipset limitation, DDR4 2133 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR4 2133 Mhz.

* Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz.

Graphic

Integrated Graphics Processor- Intel® HD Graphics support

VGA output support : RGB port

- Supports RGB with max. resolution 1920  x 1200  esam 60  Hz

Maximum shared memory of 1024  MB (for iGPU exclusively)

Supports Intel® InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider

Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)

2 x PCIe 2.0 x1

Storage

Intel® H110 chipset :

4 x SATA 6Gb/s port(s), gray

LAN

Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)

Audio

Realtek ALC887/897 8-Channel High Definition Audio CODEC *1

- Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

- Audio Shielding

- Dedicated audio PCB layers

- Premium Japanese-made audio capacitors

USB Ports

Intel® H110 chipset :

6 x USB 2.0/1.1 port(s) (4 at back panel, black, Type-A, 2 at mid-board)

Intel® H110 chipset :

4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, Type-A, 2 at mid-board)

Special Features

ASUS 5X Protection II :

- ASUS LANGuard - 2.5X higher surge tolerance

- ASUS Overvoltage Protection - World-class circuit-protecting power design

- ASUS DIGI+ VRM - Premium components provide better power efficiency

- ASUS DRAM Overcurrent Protection - Prevents damage from short circuits

- ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability

ASUS EPU :

- EPU

ASUS Exclusive Features :

- AI Suite 3

- Ai Charger

ASUS Quiet Thermal Solution :

- Stylish Fanless Design Heat-sink solution

- ASUS Fan Xpert

ASUS EZ DIY :

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

ASUS Q-Design :

- ASUS Q-Slot

- ASUS Q-DIMM

Operating System Support

Windows® 10

Windows® 8.1

Windows® 7 *

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x D-Sub

1 x LAN (RJ45) port(s)

2 x USB 3.2 Gen 1 (blue) Type-A

4 x USB 2.0

3 x Audio jack(s)

Internal I/O Ports

1 x CPU Fan connector(s) (1 x 4 -pin)

1 x Chassis Fan connector(s) (1 x 4 -pin)

1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)

1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)

4 x SATA 6Gb/s connector(s)

1 x S/PDIF out header(s)

1 x 24-pin EATX Power connector(s)

1 x 4-pin ATX 12V Power connector(s)

1 x Front panel audio connector(s) (AAFP)

1 x System panel(s)

1 x Clear CMOS jumper(s)

Accessories

User´s manual

I/O Shield

2 x SATA 6Gb/s cable(s)

1 x Supporting DVD

BIOS

64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial

Presence Detect) memory information

Manageability

WfM 2.0, DMI 3.0, WOL by PME, PXE

Form Factor

mATX Form Factor

8.9  inch x 7.0  inch ( 22.6  cm x 17.8  cm )

Note

*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

*Please refer to ASUS website and download Windows® 7 installation guide and ASUS EZ installer to install Windows® 7.

*Windows® 8.1 64-bit and Windows® 7 32/64-bit are only supported when using 6th Generation Intel® Processors
